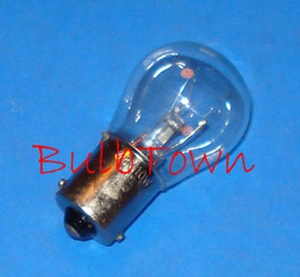

#CE9 Miniature Bulb

CE9 MINIATURE BULB BA15S BASE - 10 Watt 36 Volt .28 Amp S-8 Miniature Bulb Single Contact (S.C.) Bayonet (BA15s) Base CC-6 Filament Design 300 Average Rated Hours. 2.00" Maximum Overall Length, 1.04" Maximum Outer Diameter

Voltage: 36.0
Amperage: 0.28
Wattage: 10.08
Base: BA15S
Glass Shape: S8
Maximum Overall Length: 2.00"
Maximum Overall Diameter: 1.04"
Average Rated Life: 300
Filament: CC-6
